Technical features: The system is suitable for direct supply or centralized supply of all chemicals, and is also compatible with most brands of PLC in terms of control to achieve configuration networking centralized control. In addition, the human-machine interface of the system is detailed and simple to understand, and has a speech synthesis function.

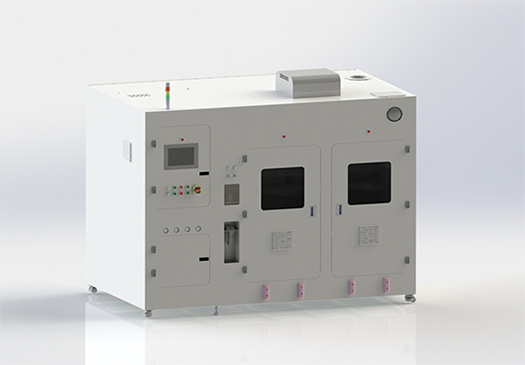

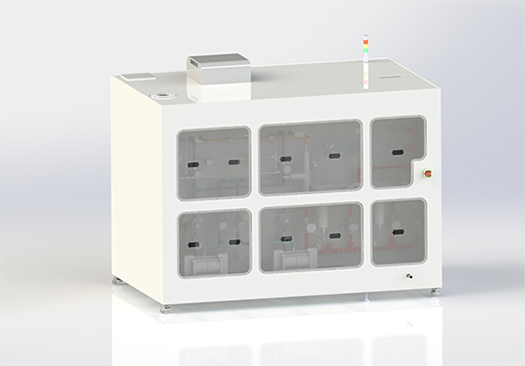

| Double barrel direct supply model | |
| Standard Configuration | Product standard configuration |
| Material： | The skeleton is CS+FC, the shell is PVC, and the liquid path is all high purity PFA imported materials. |
| Size: | L2500×W1500×H2000, about 480KG |
| PUMP: | Dual pump configuration, automatic switching, to ensure continuous system power. |
| SEPARATOR: | The system is equipped with a gas-liquid separation device to effectively remove bubbles after the drum is unprecedented. |
| DAMPER: | Equipped with pump matching damper, effectively suppress pressure fluctuations. |
| FITER: | According to the different chemical media equipped with filters to adapt to the flow requirements, detailed parameters can be selected. |
| PERSSURE TEST: | Digital monitoring of system supply pressure |
| Automatic control: | PLC&HMI programmable control and man-machine interface, efficient and intuitive control, modular control, modifiable, extensible, can be connected to the remote monitoring of the machine, electrical materials are internationally renowned brands |
| VMB Standard model | |
| Standard Configuration | Product standard configuration |
| Material： | PVC shell, stainless steel bracket, |
| Size: | L650×W300×H900, |
| Configuration list： | 1" in 3/4" out,Stick x 4,Drain1/2" |
| Automatic control: | The VMB bus is connected to the host, and the secondary distribution pipelines can be directly connected, and the linear design is saved. VMB has manual automatic simulation of available key switching, convenient for users to operate in two cases, each loop is started with an indicator. Standard configuration leakage detector, linkage control. |
